Here we will mount the host file system into a windows pod on Kubernetes.

Alternatively, if you’re not trying to read/edit an existing host file, you can mount a brand new volume to the pod, which we will also show here.

Source code

Create Kubernetes cluster

Step one is to create or have access to a Kubernetes cluster with a Windows node.

One way to do this is to use AKS Engine, which sets up all the infrastructure for your Kubernetes cluster in Azure.

make-aks-engine-cluster.ps1 along with win-cluster.json will do this for you.

All you need to provide is the subscription id you wish to deploy to:

$SUBSCRIPTION_ID=''
$CLUSTER_NAME='win-cluster'
$LOCATION='westus2'
$API_MODEL='win-cluster.json'

# Creates the resource group which will house your cluster
az group create --subscription $SUBSCRIPTION_ID --location $LOCATION --name $CLUSTER_NAME

# Creates an Azure Service Principal to let AKS-Engine deploy resources (your cluster) to your resource group
$AZSP=az ad sp create-for-rbac --name win-cluster-service-principal --role="Owner" --scopes="/subscriptions/$SUBSCRIPTION_ID/resourceGroups/$CLUSTER_NAME" -o json | ConvertFrom-Json
$CLIENT_ID=$AZSP.appId
$CLIENT_SECRET=$AZSP.password

# Let azure permissions propogate before creating cluster
Start-Sleep -Seconds 180

# Create a hostprocess capable kubernetes cluster using AKS-Engine
.\aks-engine deploy `
    --subscription-id $SUBSCRIPTION_ID  `
    --client-id $CLIENT_ID `
    --client-secret $CLIENT_SECRET `
    --resource-group $CLUSTER_NAME `
    --dns-prefix $CLUSTER_NAME `
    --location $LOCATION `
    --api-model $API_MODEL `
    --force-overwrite

make-aks-engine-cluster.ps1
​x

$SUBSCRIPTION_ID=''$CLUSTER_NAME='win-cluster'$LOCATION='westus2'$API_MODEL='win-cluster.json'​# Creates the resource group which will house your clusteraz group create --subscription $SUBSCRIPTION_ID --location $LOCATION --name $CLUSTER_NAME​# Creates an Azure Service Principal to let AKS-Engine deploy resources (your cluster) to your resource group$AZSP=az ad sp create-for-rbac --name win-cluster-service-principal --role="Owner" --scopes="/subscriptions/$SUBSCRIPTION_ID/resourceGroups/$CLUSTER_NAME" -o json | ConvertFrom-Json$CLIENT_ID=$AZSP.appId$CLIENT_SECRET=$AZSP.password​# Let azure permissions propogate before creating clusterStart-Sleep -Seconds 180​# Create a hostprocess capable kubernetes cluster using AKS-Engine.\aks-engine deploy `    --subscription-id $SUBSCRIPTION_ID  `    --client-id $CLIENT_ID `    --client-secret $CLIENT_SECRET `    --resource-group $CLUSTER_NAME `    --dns-prefix $CLUSTER_NAME `    --location $LOCATION `    --api-model $API_MODEL `    --force-overwrite​

{
   "apiVersion": "vlabs",
   "properties": {
      "orchestratorProfile": {
         "orchestratorType": "Kubernetes",
         "orchestratorRelease": "1.23",
         "kubernetesConfig": {
            "networkPlugin": "azure",
            "containerRuntime": "containerd",
            "windowsContainerdURL": "https://github.com/kubernetes-sigs/sig-windows-tools/releases/download/windows-containerd-nightly/windows-containerd.tar.gz",
            "loadBalancerSku": "basic"
         }
      },
      "masterProfile": {
         "count": 1,
         "vmSize": "Standard_D2_v2",
         "availabilityProfile": "AvailabilitySet",
         "platformUpdateDomainCount": 1
      },
      "agentPoolProfiles": [
         {
            "name": "windowspool",
            "count": 1,
            "vmSize": "Standard_D8s_v3",
            "availabilityProfile": "VirtualMachineScaleSets",
            "osType": "Windows",
            "enableVMSSNodePublicIP": true
         }
      ],
      "windowsProfile": {
         "adminUsername": "azureuser",
         "adminPassword": "password1234$",
         "sshEnabled": true,
         "enableAutomaticUpdates": true,
         "WindowsPublisher": "microsoft-aks",
         "WindowsOffer": "aks-windows",
         "WindowsSku": "2019-datacenter-core-ctrd-2108",
         "imageVersion": "17763.2061.210830"
      },
      "linuxProfile": {
         "adminUsername": "azureuser",
         "ssh": {
            "publicKeys": [
               {
                  "keyData": ""
               }
            ]
         }
      }
   }
}

win-cluster.json

{   "apiVersion": "vlabs",   "properties": {      "orchestratorProfile": {         "orchestratorType": "Kubernetes",         "orchestratorRelease": "1.23",         "kubernetesConfig": {            "networkPlugin": "azure",            "containerRuntime": "containerd",            "windowsContainerdURL": "https://github.com/kubernetes-sigs/sig-windows-tools/releases/download/windows-containerd-nightly/windows-containerd.tar.gz",            "loadBalancerSku": "basic"         }      },      "masterProfile": {         "count": 1,         "vmSize": "Standard_D2_v2",         "availabilityProfile": "AvailabilitySet",         "platformUpdateDomainCount": 1      },      "agentPoolProfiles": [         {            "name": "windowspool",            "count": 1,            "vmSize": "Standard_D8s_v3",            "availabilityProfile": "VirtualMachineScaleSets",            "osType": "Windows",            "enableVMSSNodePublicIP": true         }      ],      "windowsProfile": {         "adminUsername": "azureuser",         "adminPassword": "password1234$",         "sshEnabled": true,         "enableAutomaticUpdates": true,         "WindowsPublisher": "microsoft-aks",         "WindowsOffer": "aks-windows",         "WindowsSku": "2019-datacenter-core-ctrd-2108",         "imageVersion": "17763.2061.210830"      },      "linuxProfile": {         "adminUsername": "azureuser",         "ssh": {            "publicKeys": [               {                  "keyData": ""               }            ]         }      }   }}

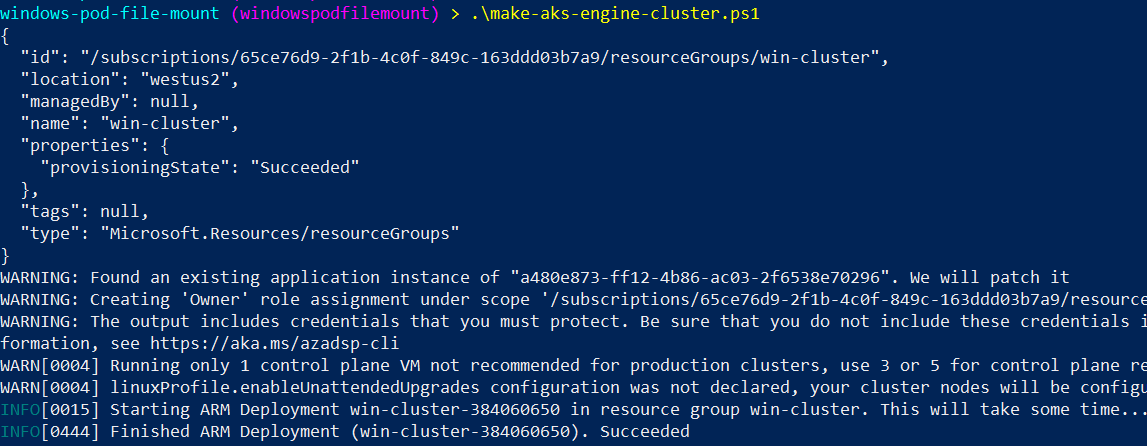

After execution you will hopefully see:

Deploying a windows Kubernetes cluster using AKS Engine

RDP and create host text file

Next we’ll RDP to the Windows agent node and create a text file.

This is just to demonstrate how the pod will be able to read and write files from/to the host.

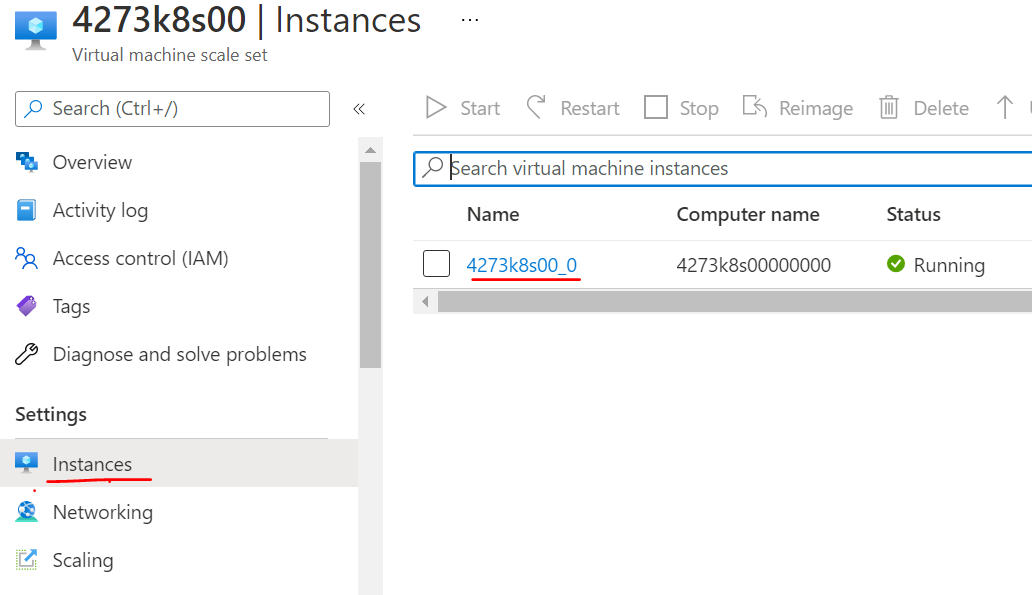

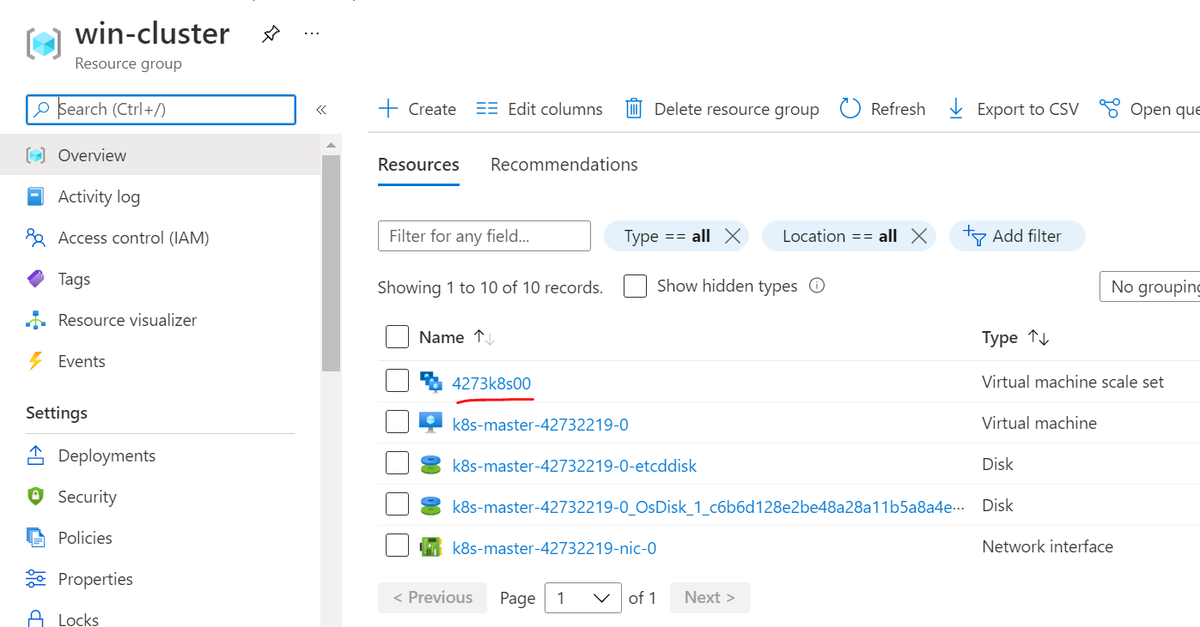

To do this navigate to your Kubernetes agent node in Azure Portal:

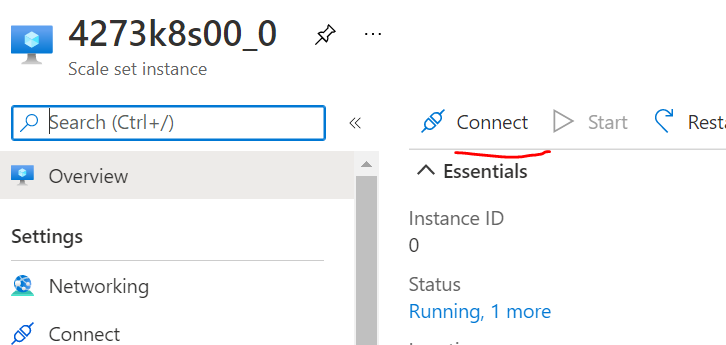

And RDP using the credentials found in win-cluster.json

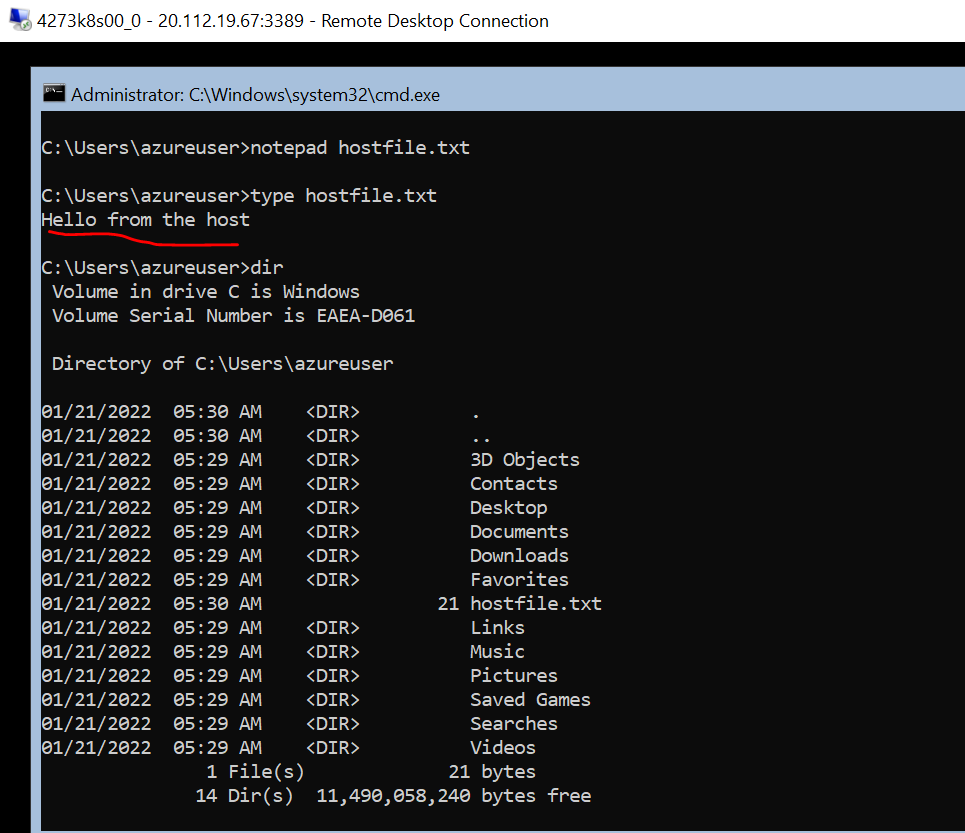

Finally, execute notepad hostfile.txt and type a funny message:

Writing a host file which we will read and write to from inside the pod

Change the text file permissions

Update 04/10/2022: Check out our post on HostProcess pods where this step is no longer needed

Normal Windows pods can’t run as “privileged” pods, so we have to do this manual permissions step. There is a new type of Windows pod called “HostProcess” pods, which can do this by default without the permissions step, a post soon to follow about it.

For the time being, we have to give the right permissions:

icacls C:\users\azureuser /grant BUILTIN\Users:(OI)(CI)(F) /t

cmd

icacls C:\users\azureuser /grant BUILTIN\Users:(OI)(CI)(F) /t

This command will give the directory C:\users\azureuser and all files/directories in it the permissions necessary for the pod to be able to read and write files.

(OI) and (CI) means that all future files in this directory will have these permissions, and (F) means full access. /t means recursively. The BUILTIN\Users is the group the pod will be a part of. Read more here if you’re interested.

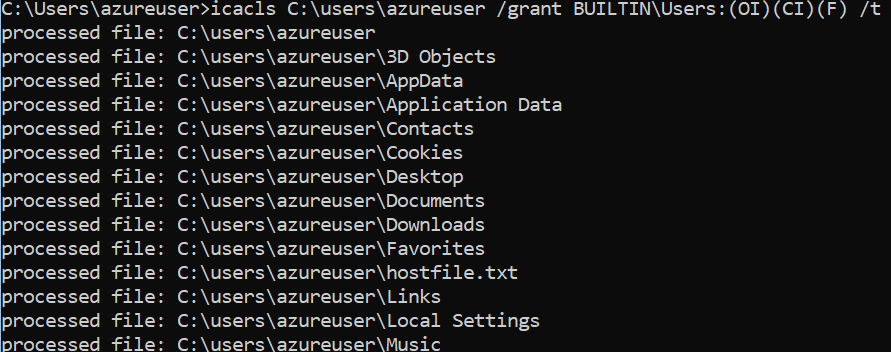

Applying proper permissions to directory, so pod can read/write to it

Containerize an app which reads and writes to a file

Next we use Docker to containerize app.go, which simply reads and writes to a given file:

docker build -t windowspodfilemount:v1.0.0 -f Dockerfile .

shell

docker build -t windowspodfilemount:v1.0.0 -f Dockerfile .

# Use golang image to build binary
FROM golang:1.17 AS builder

# Make a working directory
WORKDIR /usr/local/app

# Copy the source code into the container
COPY src/ .

# Build the app
RUN go build app.go

# Copy the app binary into the final container image
FROM mcr.microsoft.com/windows/nanoserver:1809
COPY --from=builder /usr/local/app/app.exe \
    /usr/local/bin/app.exe

ENTRYPOINT ["/usr/local/bin/app.exe"]

Dockerfile

# Use golang image to build binaryFROM golang:1.17 AS builder​# Make a working directoryWORKDIR /usr/local/app​# Copy the source code into the containerCOPY src/ .​# Build the appRUN go build app.go​# Copy the app binary into the final container imageFROM mcr.microsoft.com/windows/nanoserver:1809COPY --from=builder /usr/local/app/app.exe \    /usr/local/bin/app.exe​ENTRYPOINT ["/usr/local/bin/app.exe"]

package main

import (
	"fmt"
	"io/ioutil"
	"os"
	"time"
)

func main() {
	hostFileToReadLocation := os.Args[1]
	hostFileToWriteLocation := os.Args[2]

	fmt.Printf("host file to read: %s\n", hostFileToReadLocation)
	fmt.Printf("host file to write: %s\n", hostFileToWriteLocation)

	// Read host file from inside the container!
	content, err := ioutil.ReadFile(hostFileToReadLocation)
	if err != nil {
		fmt.Printf("Error from reading: %v\n", err)
	}
	text := string(content)
	fmt.Println(text)

	// Write to host file from inside the container!
	f, err := os.OpenFile(hostFileToWriteLocation, os.O_APPEND|os.O_WRONLY|os.O_CREATE, 0600)
	if err != nil {
		fmt.Printf("Error opening file to write: %v\n", err)
	}
	if _, err = f.WriteString("Hello from the container!\n"); err != nil {
		fmt.Printf("Error writing to file: %v\n", err)
	}

	// Sleep
	time.Sleep(1 * time.Hour)
}

app.go

package main​import (    "fmt"    "io/ioutil"    "os"    "time")​func main() {    hostFileToReadLocation := os.Args[1]    hostFileToWriteLocation := os.Args[2]​    fmt.Printf("host file to read: %s\n", hostFileToReadLocation)    fmt.Printf("host file to write: %s\n", hostFileToWriteLocation)​    // Read host file from inside the container!    content, err := ioutil.ReadFile(hostFileToReadLocation)    if err != nil {        fmt.Printf("Error from reading: %v\n", err)    }    text := string(content)    fmt.Println(text)​    // Write to host file from inside the container!    f, err := os.OpenFile(hostFileToWriteLocation, os.O_APPEND|os.O_WRONLY|os.O_CREATE, 0600)    if err != nil {        fmt.Printf("Error opening file to write: %v\n", err)    }    if _, err = f.WriteString("Hello from the container!\n"); err != nil {        fmt.Printf("Error writing to file: %v\n", err)    }​    // Sleep    time.Sleep(1 * time.Hour)}

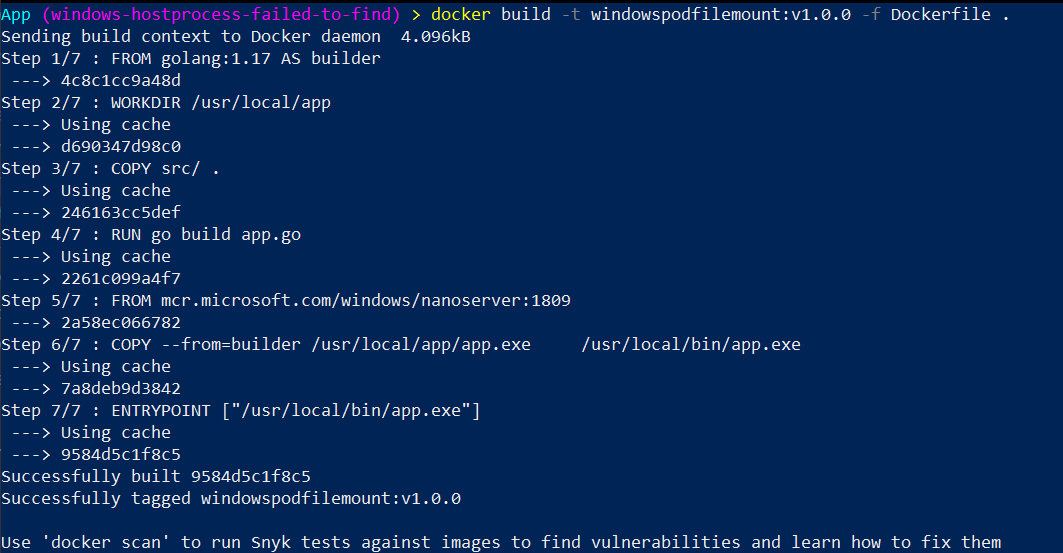

Containerizing a simple app which reads and writes to a specified file

Deploy the pod with host file mount

Next we deploy the app in a Windows pod with the host file system mounted as a volume.

.\kubectl --kubeconfig .\_output\win-cluster\kubeconfig\kubeconfig.westus2.json apply -f windowspodfilemount.yaml

kubectl

.\kubectl --kubeconfig .\_output\win-cluster\kubeconfig\kubeconfig.westus2.json apply -f windowspodfilemount.yaml

apiVersion: v1
kind: Pod
metadata:
  name: winpodfilemount
spec:
  nodeSelector:
    kubernetes.io/os: windows
  containers:
  - name: winpodfilemount
    image: coolstercodes.azurecr.io/windowspodfilemount:v1.0.0
    imagePullPolicy: Always
    args: ["C:\\hostfilemount\\hostfile.txt", "C:\\hostfilemount\\hostfile.txt"]
    volumeMounts:
      - name: hostfilemount
        mountPath: /hostfilemount
  volumes:
    - name: hostfilemount
      hostPath:
        path: /users/azureuser
        type: Directory

windowspodfilemount.yaml

apiVersion: v1kind: Podmetadata:  name: winpodfilemountspec:  nodeSelector:    kubernetes.io/os: windows  containers:  - name: winpodfilemount    image: coolstercodes.azurecr.io/windowspodfilemount:v1.0.0    imagePullPolicy: Always    args: ["C:\\hostfilemount\\hostfile.txt", "C:\\hostfilemount\\hostfile.txt"]    volumeMounts:      - name: hostfilemount        mountPath: /hostfilemount  volumes:    - name: hostfilemount      hostPath:        path: /users/azureuser        type: Directory

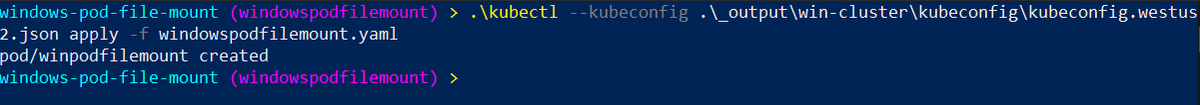

After deployment you should see something like:

Deploying the windows pod with file mount

And finally view the logs with:

.\kubectl --kubeconfig .\_output\win-cluster\kubeconfig\kubeconfig.westus2.json logs winpodfilemount

kubectl

.\kubectl --kubeconfig .\_output\win-cluster\kubeconfig\kubeconfig.westus2.json logs winpodfilemount

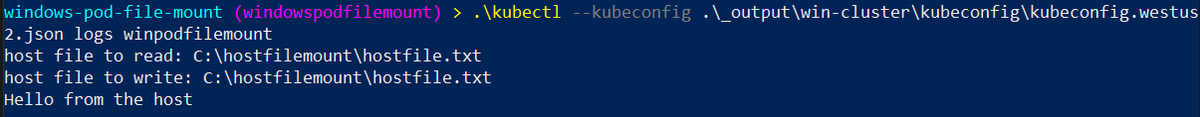

View pod logs, you see “Hello from the host” because the pod was able to read the hostfile.txt contents

Verify

Now you can RDP back onto the Windows agent node and see the updated hostfile.txt:

You wrote to a host file from within the pod! Great job

Alternative

If you’re just trying to write to the host and it doesn’t need to be an existing directory, you could alternatively use windowspodfilemount_alternative.yaml, which creates a new directory on the host which the pod has full access to.

.\kubectl --kubeconfig .\_output\win-cluster\kubeconfig\kubeconfig.westus2.json apply -f windowspodfilemount_alternative.yaml

kubectl

.\kubectl --kubeconfig .\_output\win-cluster\kubeconfig\kubeconfig.westus2.json apply -f windowspodfilemount_alternative.yaml

apiVersion: v1
kind: Pod
metadata:
  name: winpodfilemount
spec:
  nodeSelector:
    kubernetes.io/os: windows
  containers:
  - name: winpodfilemount
    image: coolstercodes.azurecr.io/windowspodfilemount:v1.0.0
    imagePullPolicy: Always
    args: ["C:\\hostfilemount\\hostfile.txt", "C:\\hostfilemount\\hostfile.txt"]
    volumeMounts:
      - name: hostfilemount
        mountPath: /hostfilemount
  volumes:
    - name: hostfilemount
      hostPath:
        path: /new/host/directory
        type: DirectoryOrCreate

windowspodfilemount_alternative.yaml

apiVersion: v1kind: Podmetadata:  name: winpodfilemountspec:  nodeSelector:    kubernetes.io/os: windows  containers:  - name: winpodfilemount    image: coolstercodes.azurecr.io/windowspodfilemount:v1.0.0    imagePullPolicy: Always    args: ["C:\\hostfilemount\\hostfile.txt", "C:\\hostfilemount\\hostfile.txt"]    volumeMounts:      - name: hostfilemount        mountPath: /hostfilemount  volumes:    - name: hostfilemount      hostPath:        path: /new/host/directory        type: DirectoryOrCreate

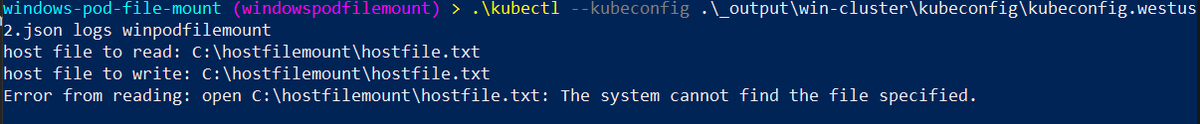

The “read” portion of the code will error out (because there’s nothing in this new directory), but the write will succeed:

.\kubectl --kubeconfig .\_output\win-cluster\kubeconfig\kubeconfig.westus2.json logs winpodfilemount

kubectl

.\kubectl --kubeconfig .\_output\win-cluster\kubeconfig\kubeconfig.westus2.json logs winpodfilemount

Alternative approach where you just need to write to the host, and it doesn’t need to be an existing directory/file

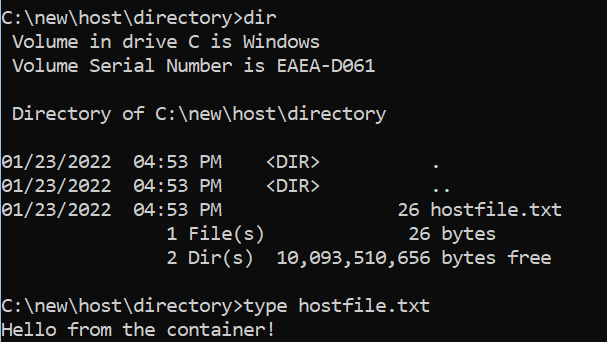

And finally you can verify by RDP’ing to the Windows agent node, that there is a new directory created by the pod:

Writing a new file to the host, in a new directory

This Post Has 4 Comments

Vasudev Akkur April 4, 2022 Reply

Thank you very much for the post!!

I am trying to solve an issue where one of the pods needs to read the file from the host file system. I granted the permissions as mentioned but still, the pod could read the host files but can read the files that are created from the pod

This is a fluent-bit pod to tail the logs from C:\\var\\log\\containers and send the logs to a collector.
1. Vasudev Akkur April 4, 2022 Reply

  https://docs.microsoft.com/en-us/answers/questions/786486/mounted-hostfile-system-to-windows-container-to-re.html
2. Coolster April 4, 2022 Reply

  Hi Vasudev!
  Thank you for your comment! Let me take a look at this tonight and get back to you
3. Coolster April 5, 2022 Reply

  Hi Vasudev,
  If your pod still cannot read the host files you’ve mentioned, even with this command to the “/var/log/containers” directory: “icacls C:\users\azureuser /grant BUILTIN\Users:(OI)(CI)(F) /t” then what I would suggest is to use instead, a HostProcess Pod to deploy your app

  https://coolstercodes.com/windows-hostprocess-pod-failed-to-get-application-name-from-commandine-failed-to-find-executable/

  I can make a post to identify more specifically your situation soon, but in the meantime, here is a post about HostProcess pods and how to make one.

  Even more specifically, in the “hostprocesspod.yaml” code segment, the part that relates to pod permissions on the host is

  securityContext:
  windowsOptions:
  hostProcess: true
  runAsUserName: “NT AUTHORITY\\Local service”

  https://github.com/pjohnst5/CoolsterCodes/blob/8a819709f04b6dd9c154323d2c7422bc39767164/posts/windows-hostprocess-failed-to-get-application-name/hostprocesspod.yaml#L8

  And then more documentation on the possible values of “runAsUserName” are here: https://kubernetes.io/docs/tasks/configure-pod-container/configure-runasusername/

  “Examples of acceptable values for the runAsUserName field: ContainerAdministrator, ContainerUser, NT AUTHORITY\NETWORK SERVICE, NT AUTHORITY\LOCAL SERVICE.”

  Hope it helps!
